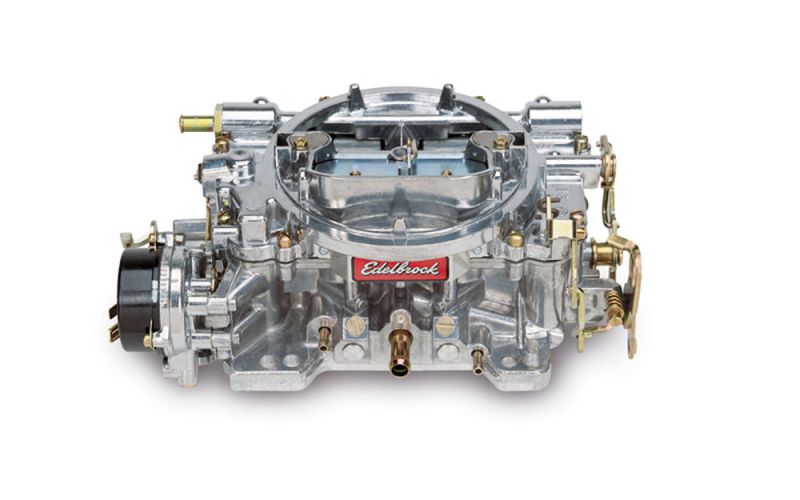

1403 | EDELBROCK CARBURATEUR 500CFM 4-BBL ELECTRISCHE CHOKE NON-EGR

760,95 €

Nicht lieferbar

SKU

1403

1403 | EDELBROCK CARBURATEUR

Size: 500CFM 4-BBL

Optie: ELECTRISCHE CHOKE NON-EGR

Geschikt voor een standaard 5,7L (350cid) en alles wat kleiner is.

Availability	Available
Application	Universal
UPC	00085347014033
Condition	New
Series	Performer
Metering Rod Size	.065 x .047 in
Gasket Or Seal Included	Yes
Barrel Quantity	4 Barrel
Flange Type	Square
Secondary Jet Diameter	0.095
Main Venturi Diameter	1.19
Body Height	3.25
Bore Diameter	Primary Bore 1.44; Secondary Bore 1.69
Spring Force	5" Hg (Orange)
Availability Note	Available to Order
Warranty	3 Months
Emissions Code
Hazardous Materials Warning	WARNING: This product can expose you to Zinc, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Installation Notes	Recommended cubic inch displacement for small block dual quad applications is 302-400+ c.i.d.; Recommended cubic inch displacement for big block dual quad applications is 396-502+ c.i.d.; Performer Series Carbs will work with Ford automatic overdrive trans (AOD) when used with Lokar bracket SRK-4000; Edelbrock carburetors are not calibrated for or compatible with alcohol, race or E85 pump fuel. The use of alcohol or E85 in your Edelbrock carburetor will damage your carburetor and void your warranty. These fuels can also damage other fuel system components, unless specifically designed for use with alcohol fuels
Body Color	Satin Finish
Choke Type	Electric
Finish	Satin
Marine Approved	No
Material	Aluminum
CFM Rating	500 cfm
Primary Jet Diameter	0.086
